Continuous Industrial Rotary Vacuum Dryer With Blades
| Payment Type: | T/T |
|---|---|
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 60 Days |
| Packaging: | Wooden pallets/ Cartons/Plastic stretch-wrap |
|---|---|
| Brand: | Zhang |
| Transportation: | Ocean |
| Place of Origin: | Jiangsu Wuxi |
| Supply Ability: | 60/Year |
| Certificate: | CE |
| Port: | Shanghai |
Product Description
Vacuum Drying Equipment > Multifunctional drying unit with blades > Continuous Industrial Rotary Vacuum Dryer With Blades
Multifunctional drying unit with blades

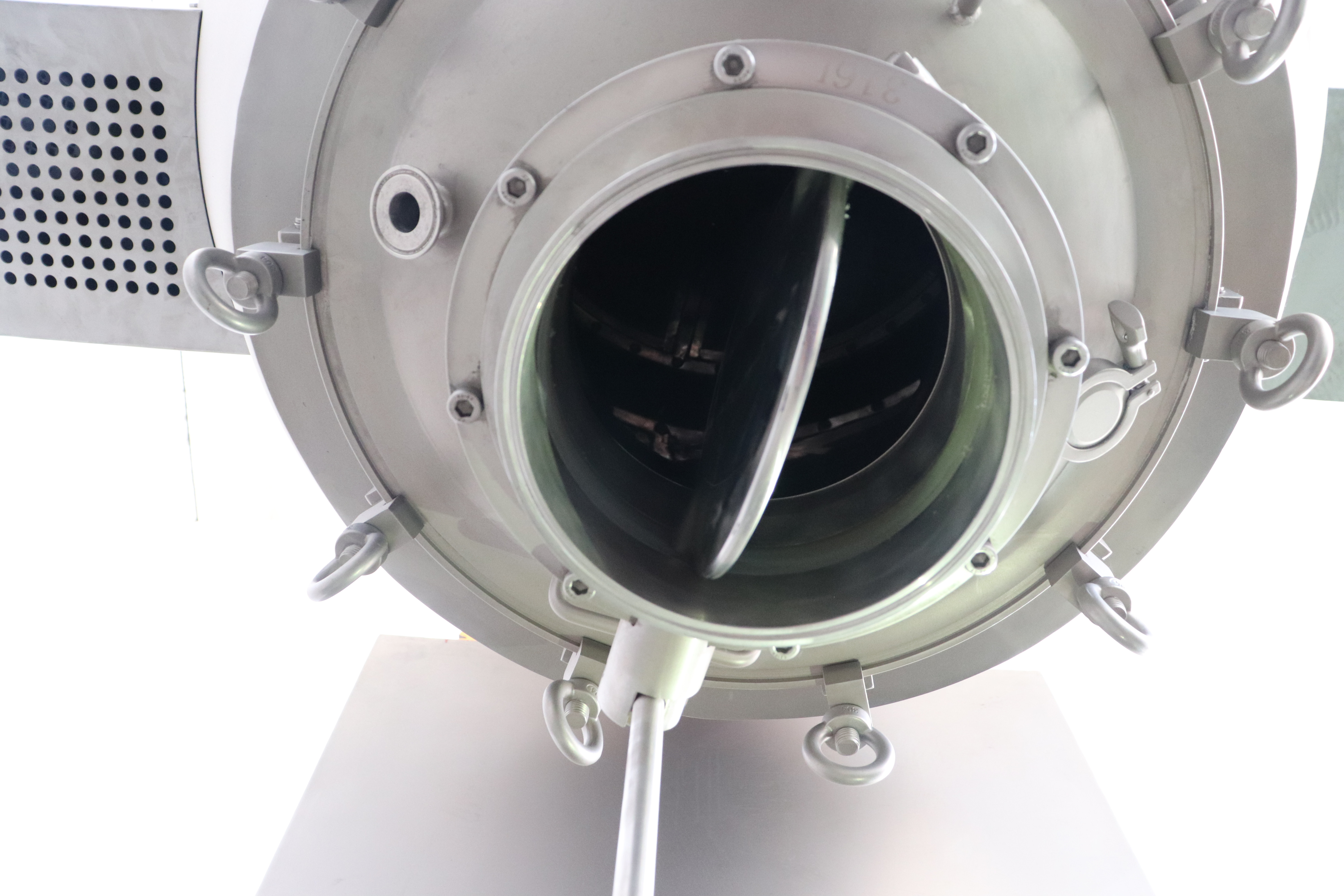

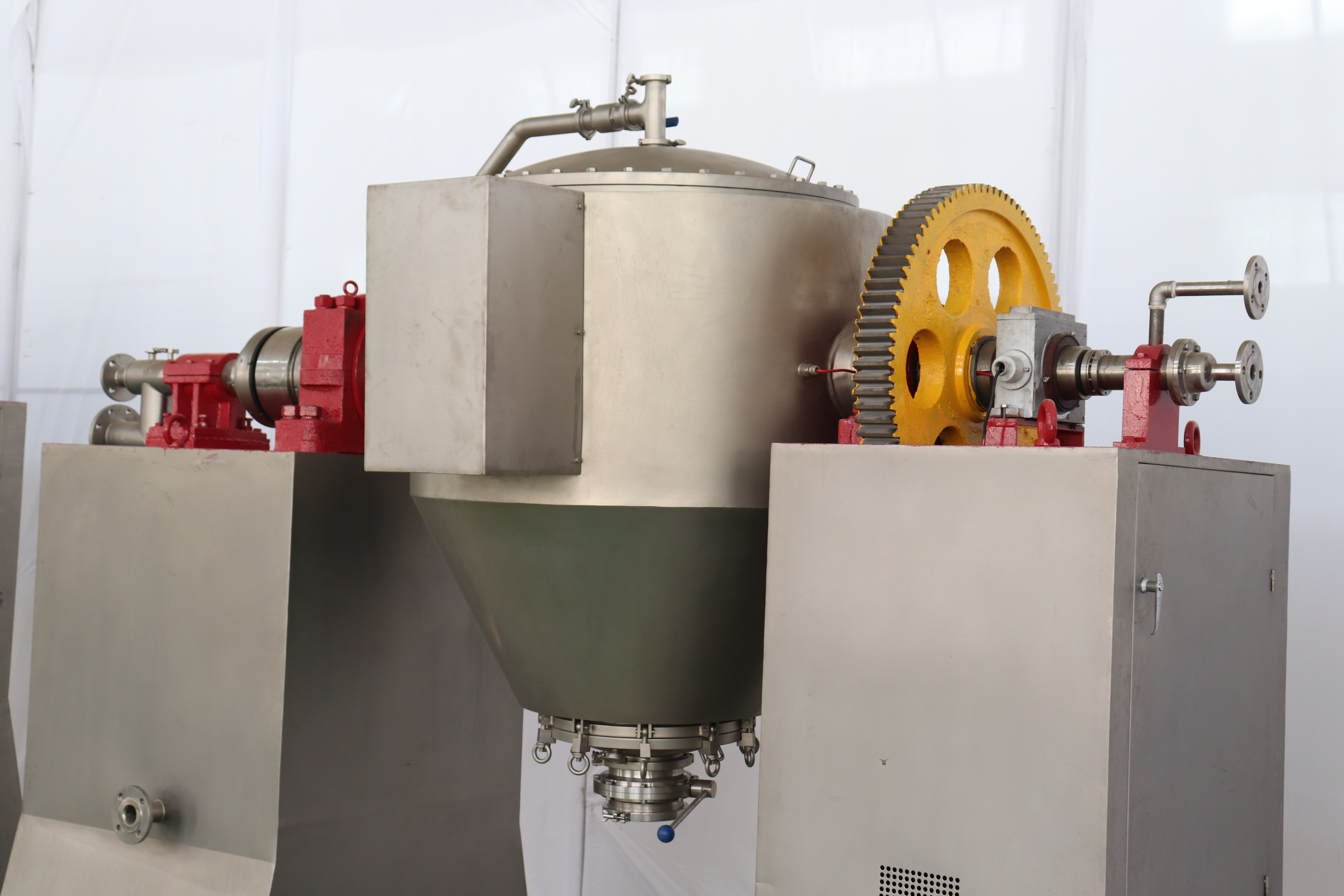

On the basis of the original twin-cone rotary vacuum dryer, through professional design and manufacture, two sets of crushing devices are added at both ends of the twin-cone, which can be used for drying amorphous crystal or fine crystal materials and heat-sensitive materials, effectively preventing the material from agglomerating and forming into balls in the drying process.The effective application of the crushing device enables the dried materials to obtain the maximum surface area during the drying process, which greatly reduces the drying time. Moreover, most materials will not be crushed or granulated before and after drying, and the finished products can be packaged directly, avoiding the secondary products Dyeing, in line with the "GMP" requirements.
➤1. Reaction, crystallization and concentration stage
The cone with mixer is downward,Mixing form can be chosen freelyaccording to the characters of materials. The material is sent to theequipment from loading position on the side of the equipment. Thecontinuous turning of the mixing blade makes reaction, crystallization and concentration
➤2. Filtering stage
Rotate the container for 180 degrees and turn the cone with the filteringplate downward. Connect the bottom of this cone with a vacuum deviceand complete the separation of filter cake and mother liquid
➤3. Washing stage
After filtering, take into the lotion, then start the mixing liquid, rotate thecontainer at the same time, crash the filter cake and purify it further bylotion, then wash the rest mother liquid and dehydrate
➤4. Drying stage
After the second filtering stage, anti-blow the container by nitrogen gasAfte through the vacuum orifice. Make the filter cake separate from the filternet Rotate the container, and in this process, let the filter cake crashedby crasher. Make the hot water circulate in the jacket to heat the wholecontainer, dry the material under the vacuum condition. Sampling inplace process is also done. The tornado separation machine can catchand gather the tiny powder while the condenser can collect organic solvent
Product Details
Technical Parameter
| Total Capacity | Loading quantity | power of the lender | Rotate speed of dryer(R/min) | Area of condenser matches |
| 500L | 250L | 0.75kw | 0-5rpm/min | 7㎡ |
| 750L | 350L | 0.75kw | 0-5rpm/min | 7㎡ |
| 1000L | 350L | 1.1kw | 0-5rpm/min | 10㎡ |
| 1200L | 600L | 1.1kw | 0-5rpm/min | 12㎡ |
| ... | ... | ... | .. | .. |
| 10000L | 5000L | 1.5kw | 0-3.2rpm/min | 100㎡ |
Our Advantage
| | High concentricity of two axes of equipment， 3000L with the concentric degree ≤ 0.16mm, 3000L-5000Lconcentricity ≤ 0.20mm,5000L - 18000L concentricity ≤0.25 mm. More stable operation, better sealing performance, longer service life |
| New advanced airtight technology, vacuum ≤ 030Pa, improve product quality, can be used for aseptic grade product production | |
| Clean CIP online (if configured) to reduce labor and equipment pollution | |
| Online sterilized SIP (if configured), capable of producing sterile products | |
| Online weighing system (if configured) eliminates the need for weighing after secondary material transfer to reduce labor force and improve measuring accuracy | |
| Polishing precision up to 0.014μm, (if configured), easy to clean equipment, prevent material sticking to the wall | |
| Double taper with knife (if available) to prevent pilling of sticky materials during drying | |
| The first in China, the double cone produced in 1978, is still in use by users, with reliable performance. With nearly 40 years of experience, it has produced no less than 1000 sets |
Custom Service
➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)
1. Multifunctional “Three in One” (filtering, washing and drying)
2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection
2.Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection
2.Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
Company Profile
WUXI ZHANGHUA PHARMACEUTICAL EQUIPMENT CO., LTD.
Wuxi Zhanghua Pharmaceutical Equipment Co. Ltd. was founded in 1976, committed to researching, developing and manufacturing reaction, crystallization, filtration, drying equipment. With the development of the leading technologies for 44 years, our engineering equipment is not only for the pharmaceutical industry, but also for fine chemicals, pesticides, new energy, new materials and other industries. We customize the integrated solution of reaction, crystallization, filtration and drying process equipment for clients.
Our technical team is composed of quality assurance engineers, process engineers, equipment engineers, welding engineers and electrical engineers, and most of them have working experience and engineering project experience for over ten years.
For inflammable, explosive, toxic and corrosive products in pharmaceutical, fine chemical, pesticide and new energy industries, we customize the technology and equipment solution and provide high airtight, high vacuum, fully automatic equipment for clients, to ensure safety, energy conservation and environmental protection of the production process, and compliance with EHS requirements. In addition, we will optimize technology designs for users in order to produce high quality products.
All of our equipment has met FDA and CGMP requirements, ATEX explosion-proof instruction requirements and ASME requirements, and has got PED, MD, LVD certification as well.
The equipment has been exported to several pharmaceutical and chemical enterprises in Asia and Europe, so our engineers in after-sale service department have rich experience abroad.
Wuxi Zhanghua is adhering to the spirit of professionalism, credibility, integrity, innovation and harmony, committed to becoming an advanced international company with high technology and high quality trusted by all the clients. Zhanghua has more than ten intellectual property rights, including patents, software copyright and etc., all of which helps it to keep its excellent sustainability and creativity in the industry. With years of unceasing efforts, Zhanghua has made considerable progress in reaction, crystallization, filtration and drying technology on the equipment, and has established a good image in the field of pharmaceutical and chemical industry.
